Wide-Temperature Environmental Monitoring Battery

Reliable wide-temperature battery solutions for remote environmental monitoring from −40°C to +85°C.

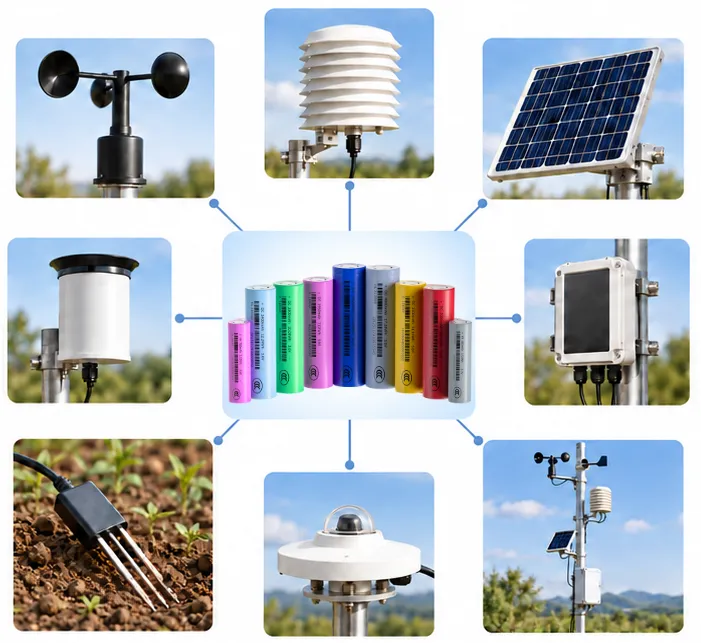

What Battery Is Used in Environmental Monitoring Equipment?

Environmental monitoring equipment relies on batteries to keep weather stations, air and water sensors, data loggers, and remote telemetry units running in the field.

Wide-temperature lithium-ion and LiFePO₄ battery packs can be configured for long operating life, reliable power during communication peaks, and the voltage and capacity each device requires.

For solar-powered systems, battery selection also depends on local temperatures, daily energy use, charging conditions, and the time the equipment must operate without sunlight.

UltraXel Environmental Monitoring Battery Solutions

Wide-temperature lithium cells and custom battery pack solutions for weather stations, data loggers, telemetry units and remote environmental sensors.

UltraXel 电池挑战与解决方案

Key Battery Challenges

Extreme Outdoor Temperatures

Cold weather reduces available capacity, while conventional lithium batteries may not support safe charging below 0°C.

→

Unstable Solar Input

Cloudy weather and shorter winter daylight can reduce charging energy and interrupt continuous monitoring.

→

Communication Current Peaks

LoRaWAN, NB-IoT, LTE-M and 4G modules create short current peaks during data transmission.

→

Limited Maintenance Access

Frequent battery replacement at remote sites increases travel costs, labor requirements and equipment downtime.

→

Long-Term Power Reliability

Environmental monitoring systems require dependable battery power to support continuous data collection and transmission for five years or longer.

→

UltraXel Battery Solutions

−40°C to +85°C Operation

Wide-temperature cells support reliable outdoor operation, with all models capable of charging down to −20°C.

Capacity Based on Solar Conditions

Battery capacity is configured according to daily consumption, seasonal solar input and required backup days.

Stable Power for Data Transmission

Low-resistance, high-power cells help maintain stable voltage during communication and control loads.

Longer Maintenance Intervals

Cell chemistry and pack capacity are selected according to standby consumption, cycle life and maintenance requirements.

Designed for 5+ Years of Operation

Battery chemistry and capacity are configured according to the device load, solar input and operating conditions to support more than five years of continuous service.

Recommended Cells for Environmental Monitoring

Compare compact, low-temperature, long-cycle and higher-capacity cells for different monitoring equipment. Final cell and pack selection depends on the device’s electrical and environmental requirements.

Need a Cell or Custom Battery Pack?

We support cell selection and custom battery packs based on your runtime, temperature,power and size requirements.

Environmental Monitoring Battery Applications

Wide-temperature battery solutions for environmental sensors, data loggers, telemetry units and remote monitoring equipment operating in demanding outdoor conditions.

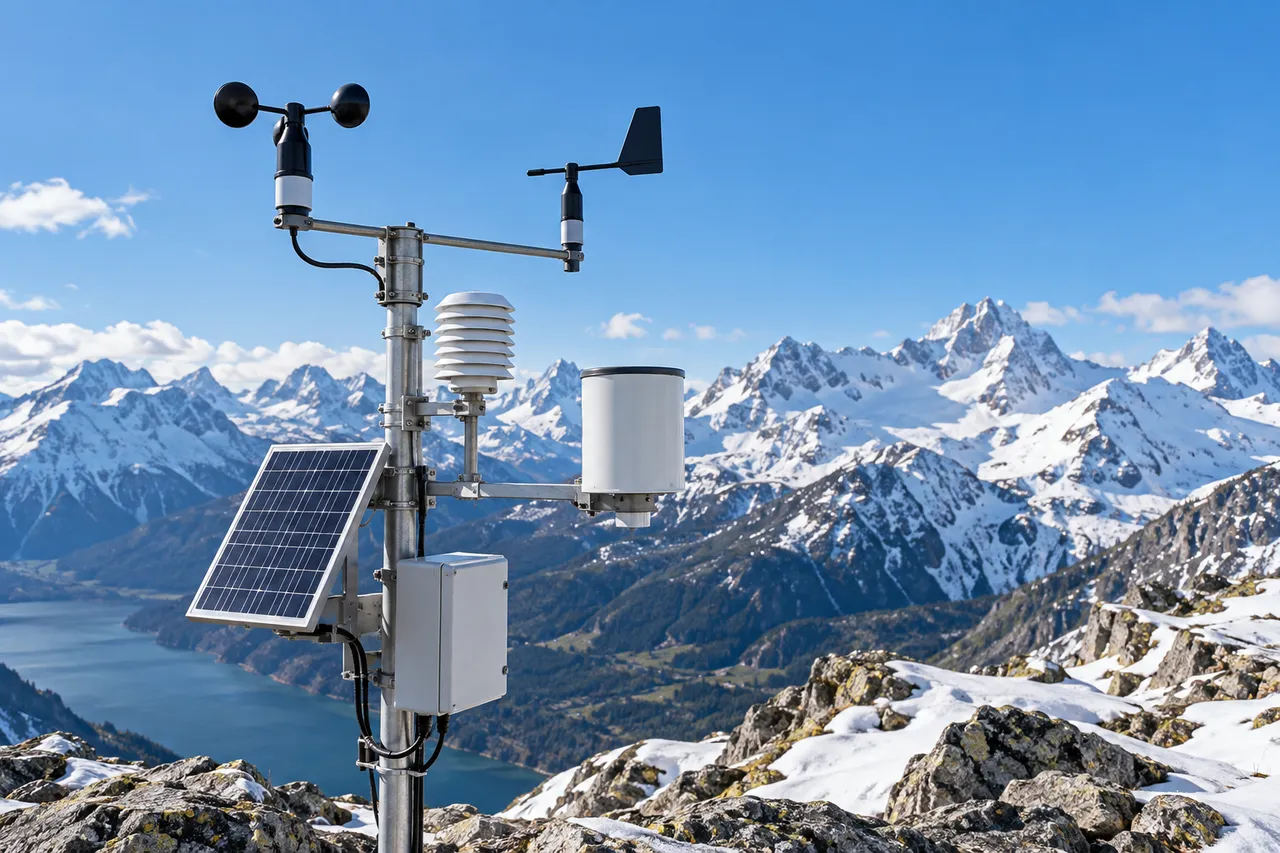

Weather Station
Batteries

Reliable battery power for automatic weather stations, rain gauges, anemometers and meteorological data loggers monitoring temperature, humidity, wind, rainfall and air pressure.

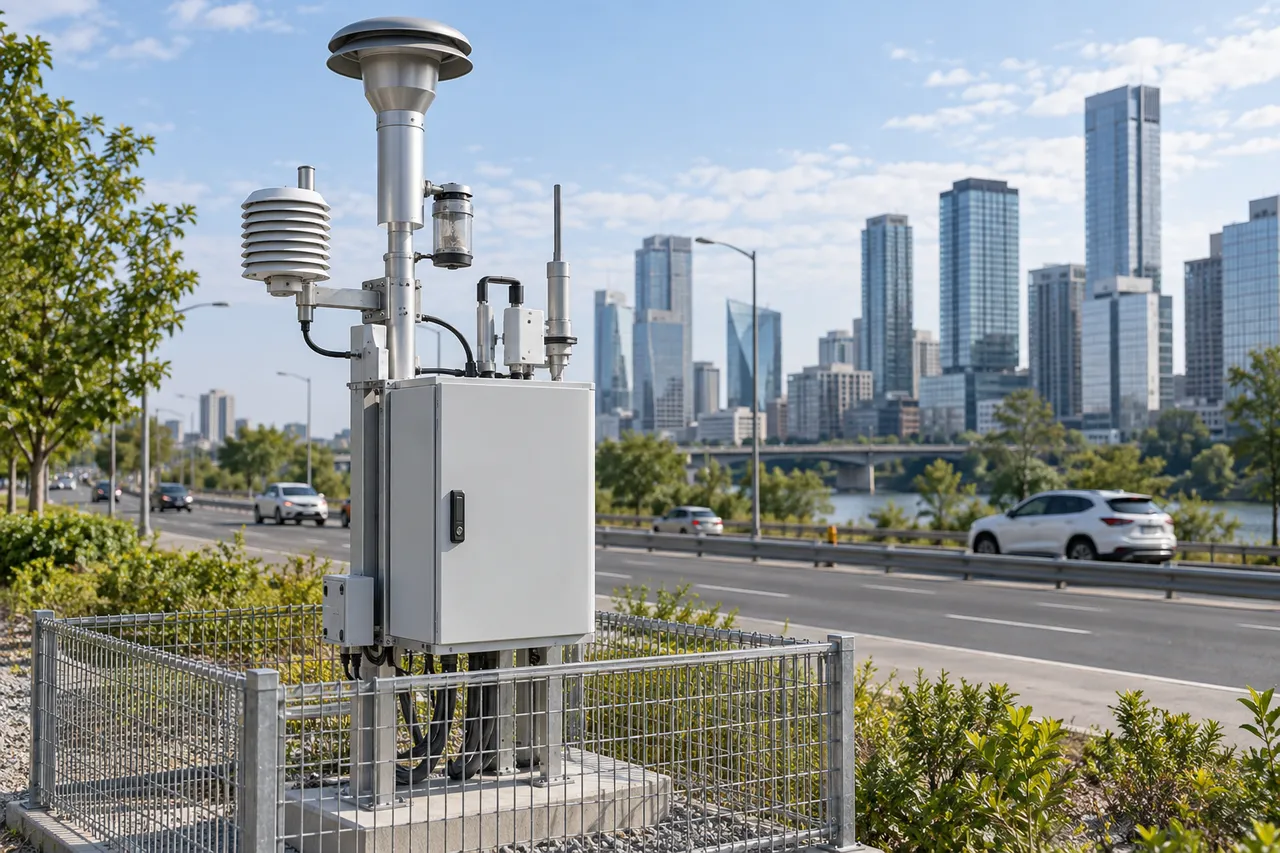

Air Quality Monitoring
Batteries

Battery solutions for outdoor air-quality stations and remote sensors measuring particulate matter, pollution gases and other atmospheric conditions.

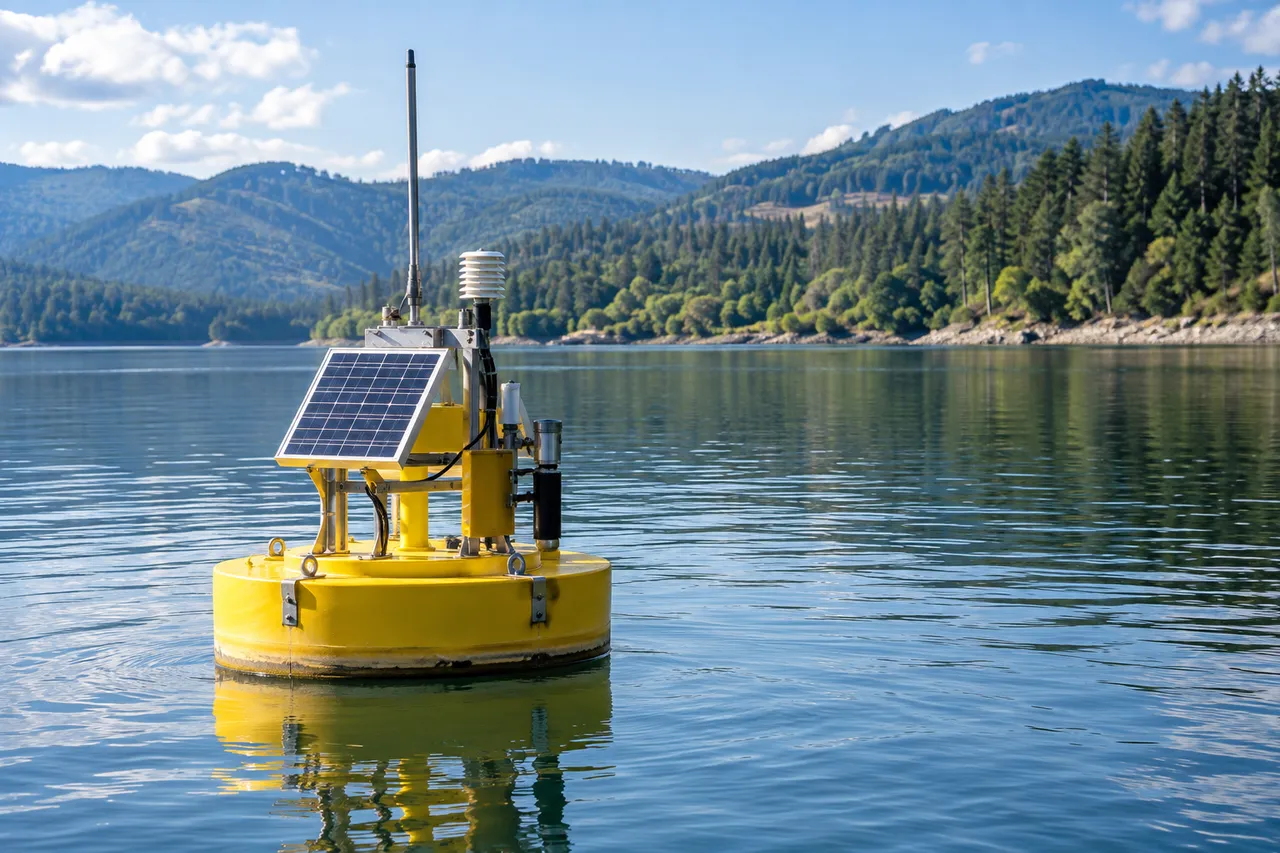

Water Quality & Hydrological Monitoring Batteries

Long-runtime batteries for water-quality sensors, water-level data loggers, flow meters, monitoring buoys and hydrological telemetry equipment.

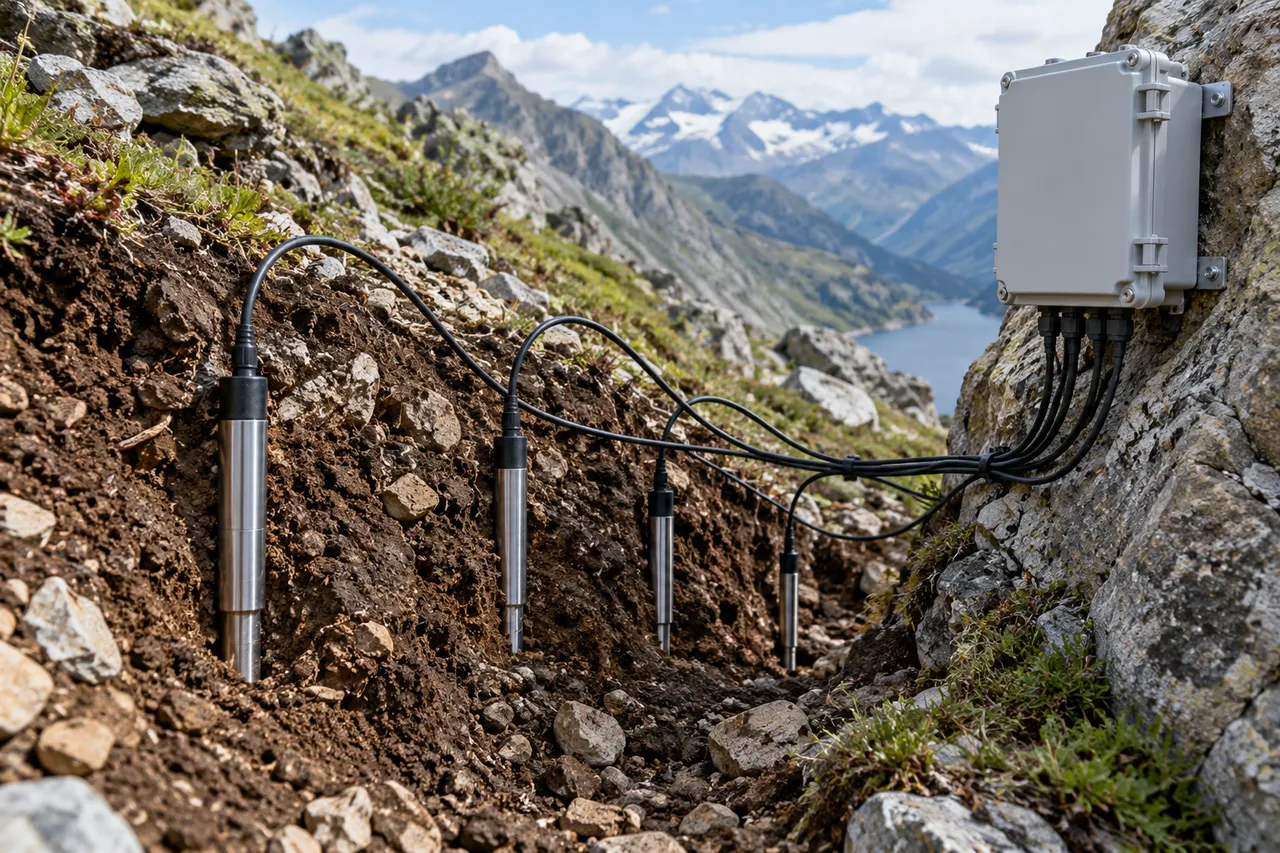

Soil & Geological Monitoring Batteries

Wide-temperature batteries for soil sensors, groundwater monitoring equipment, slope-monitoring nodes and geological data loggers installed in remote areas.

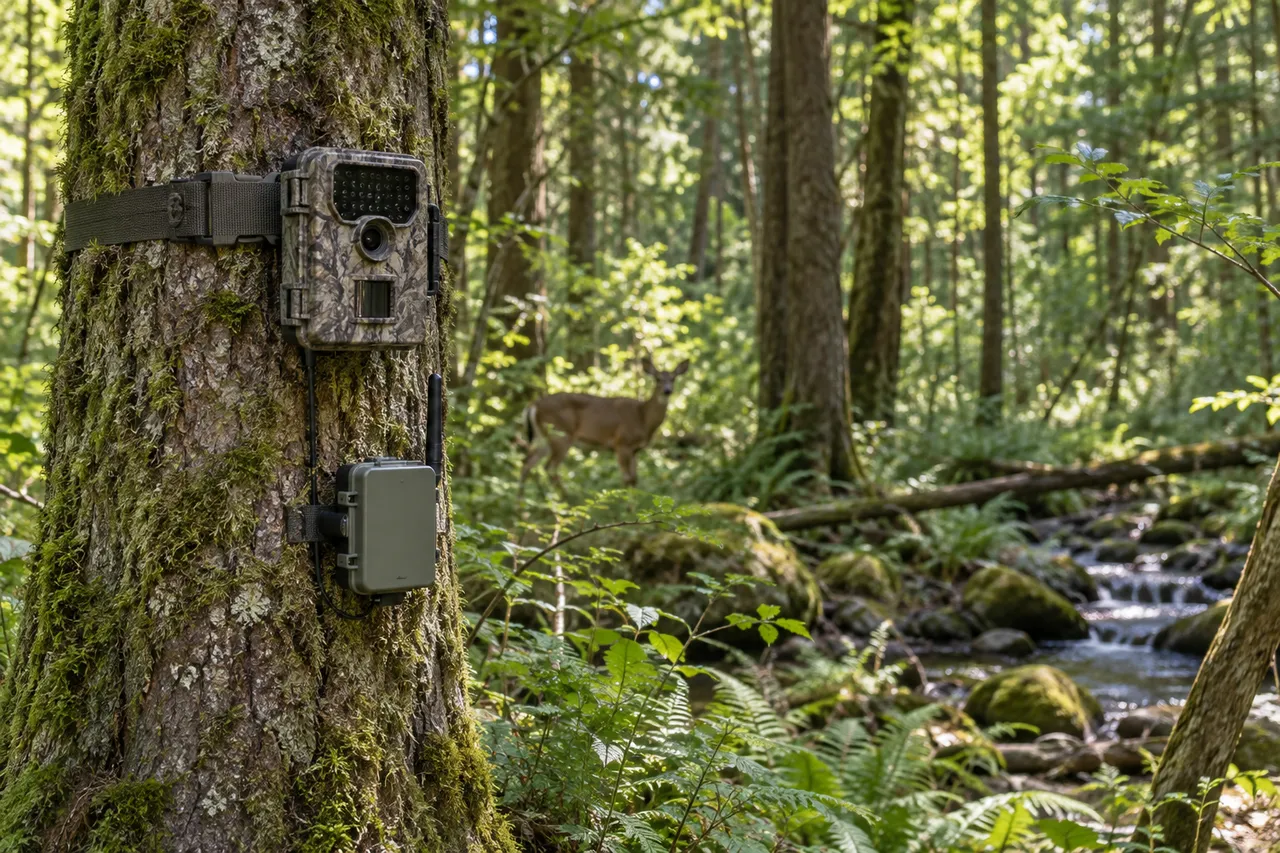

Forest & Ecological Monitoring Batteries

Reliable battery power for forest monitoring stations, ecological sensors, wildlife monitoring equipment and remote fire-detection systems.

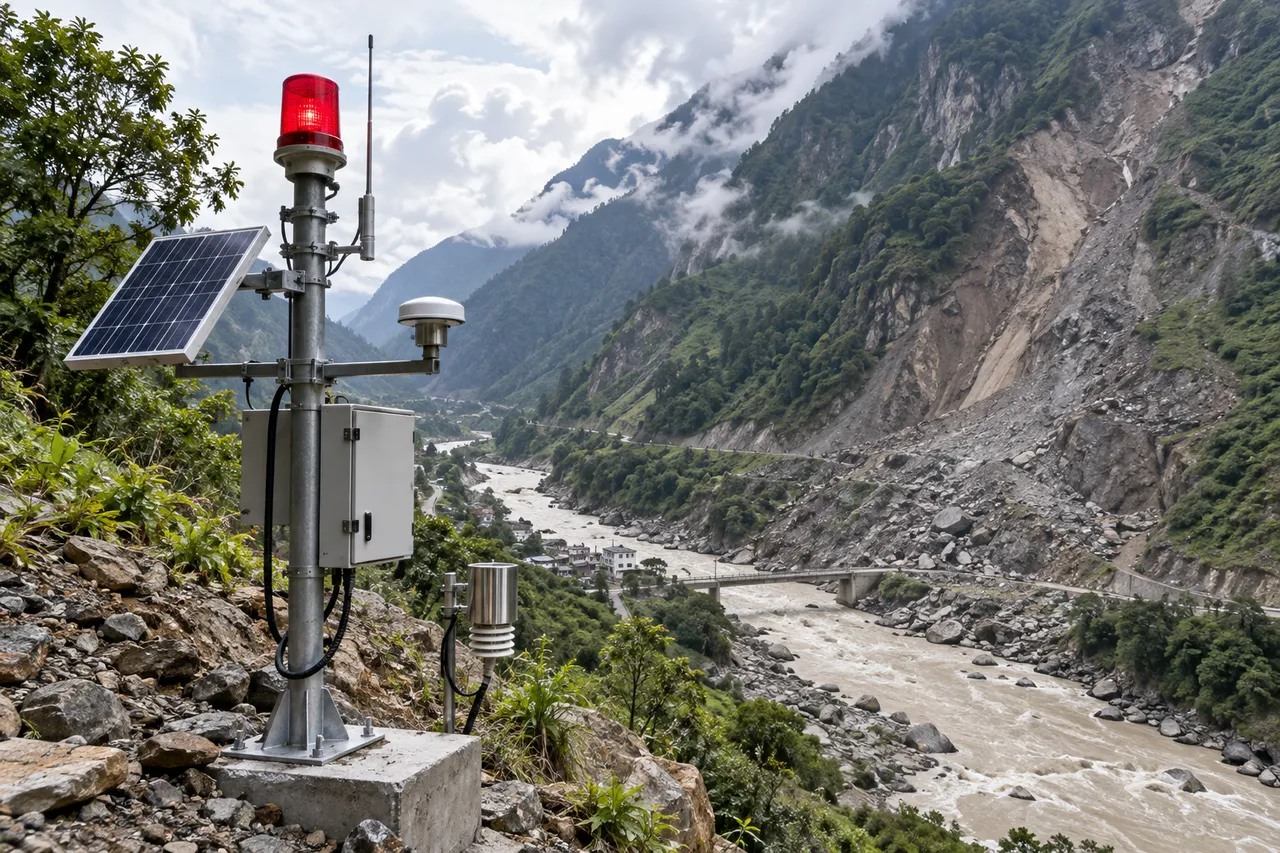

Disaster & Early-Warning System Batteries

Battery packs for flood, landslide, extreme-weather and other early-warning systems requiring continuous sensing and dependable remote data transmission.

Environmental Monitoring Battery Pack Solutions

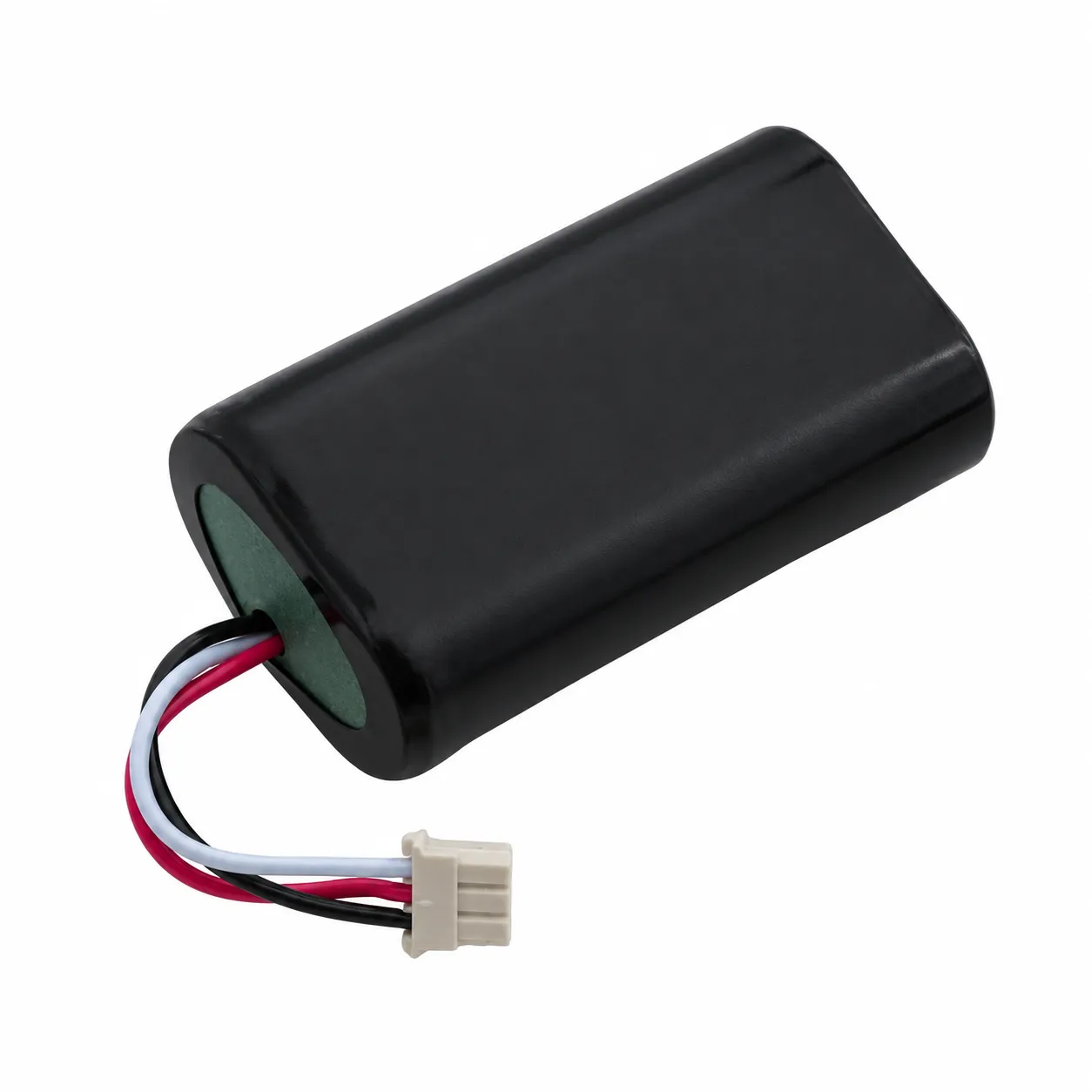

Battery Pack Option for Water Quality Monitoring Nodes

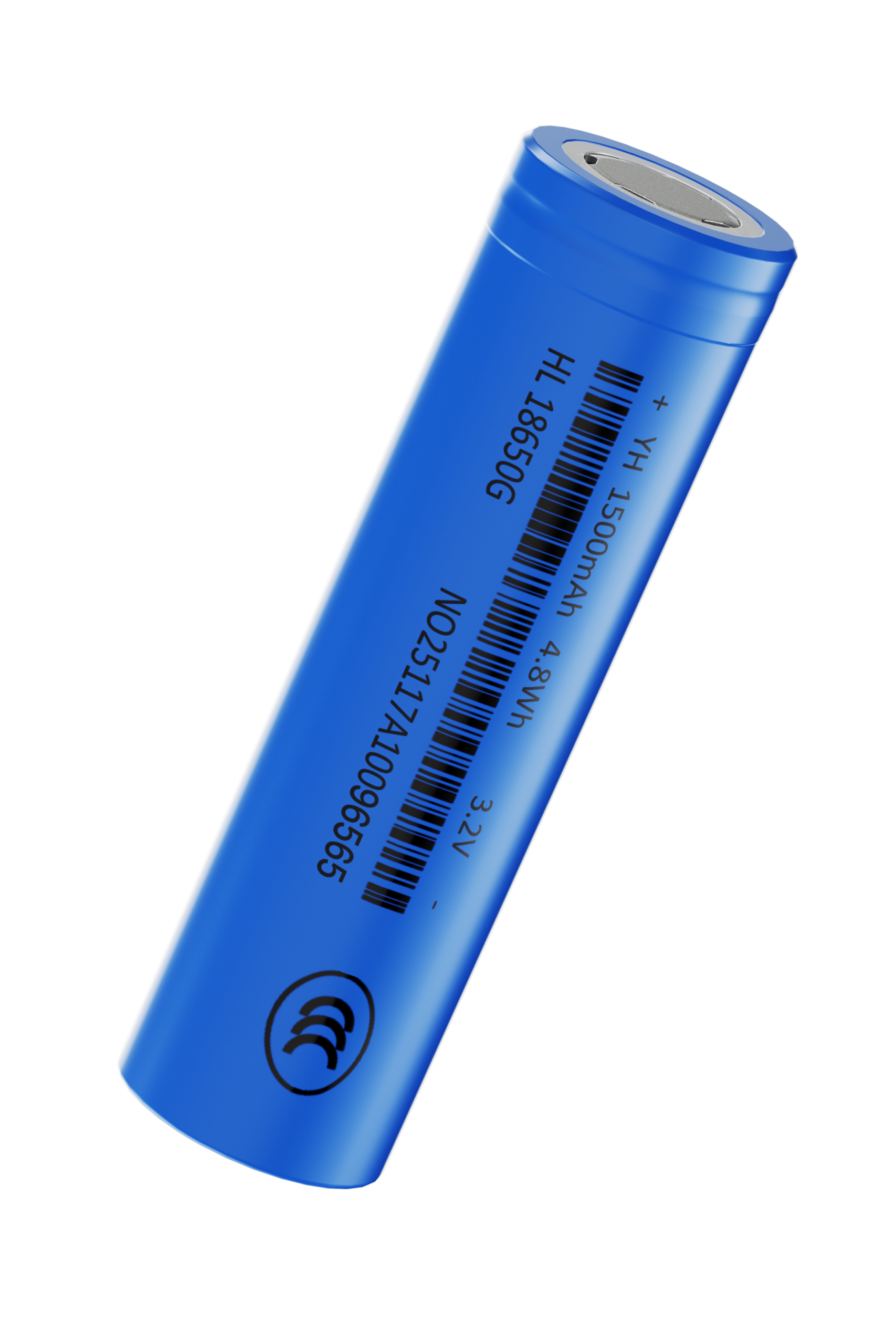

• Cell Model: HL18650G

• Chemistry: LiFePO₄

• Configuration: 1S2P

• Nominal Voltage: 3.2 V

• Nominal Capacity: 3,200 mAh

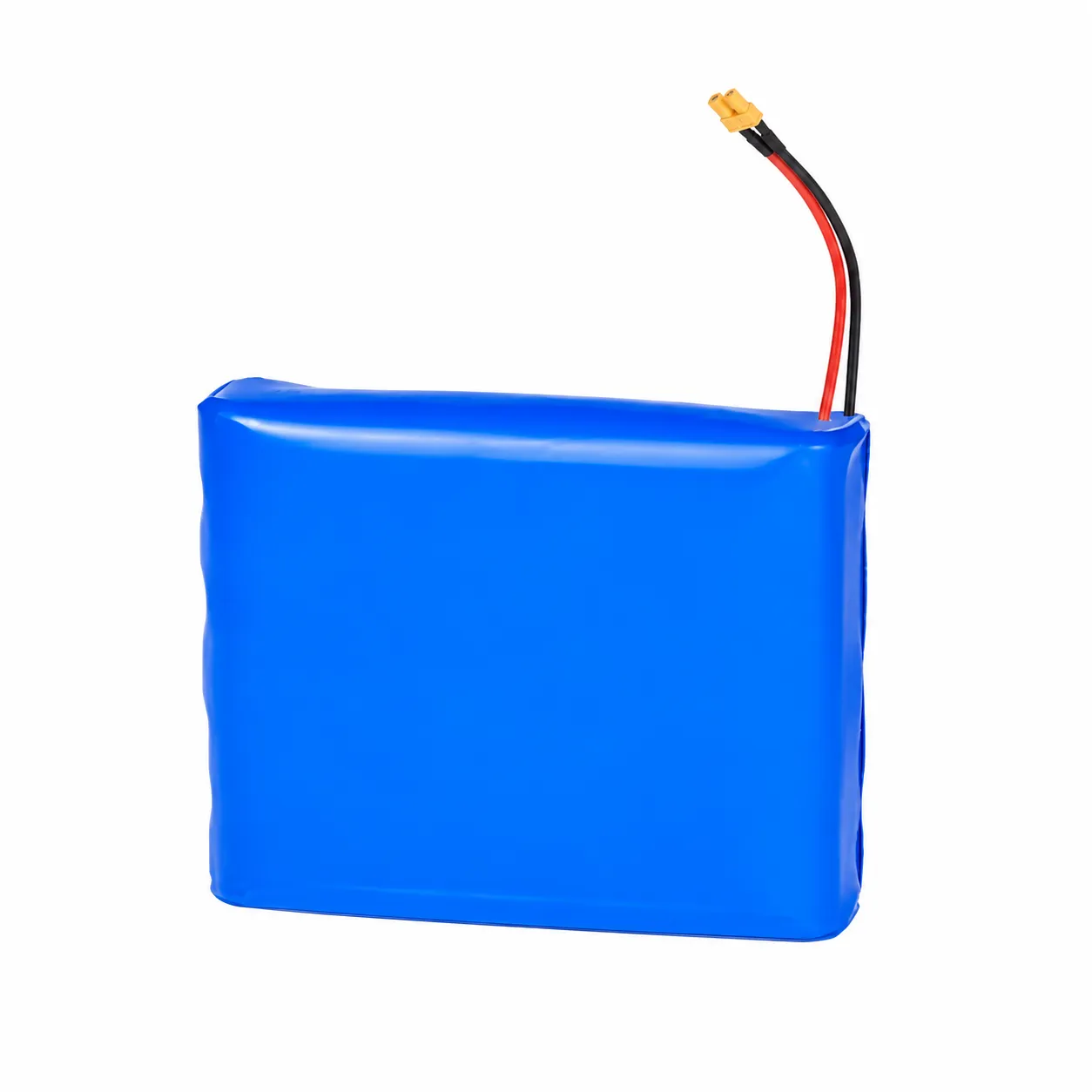

Battery Pack Option for Remote Data Loggers

• Cell Model: HL18650G

• Chemistry: LiFePO₄

• Configuration: 1S4P

• Nominal Voltage: 3.2 V

• Nominal Capacity: 6,400 mAh

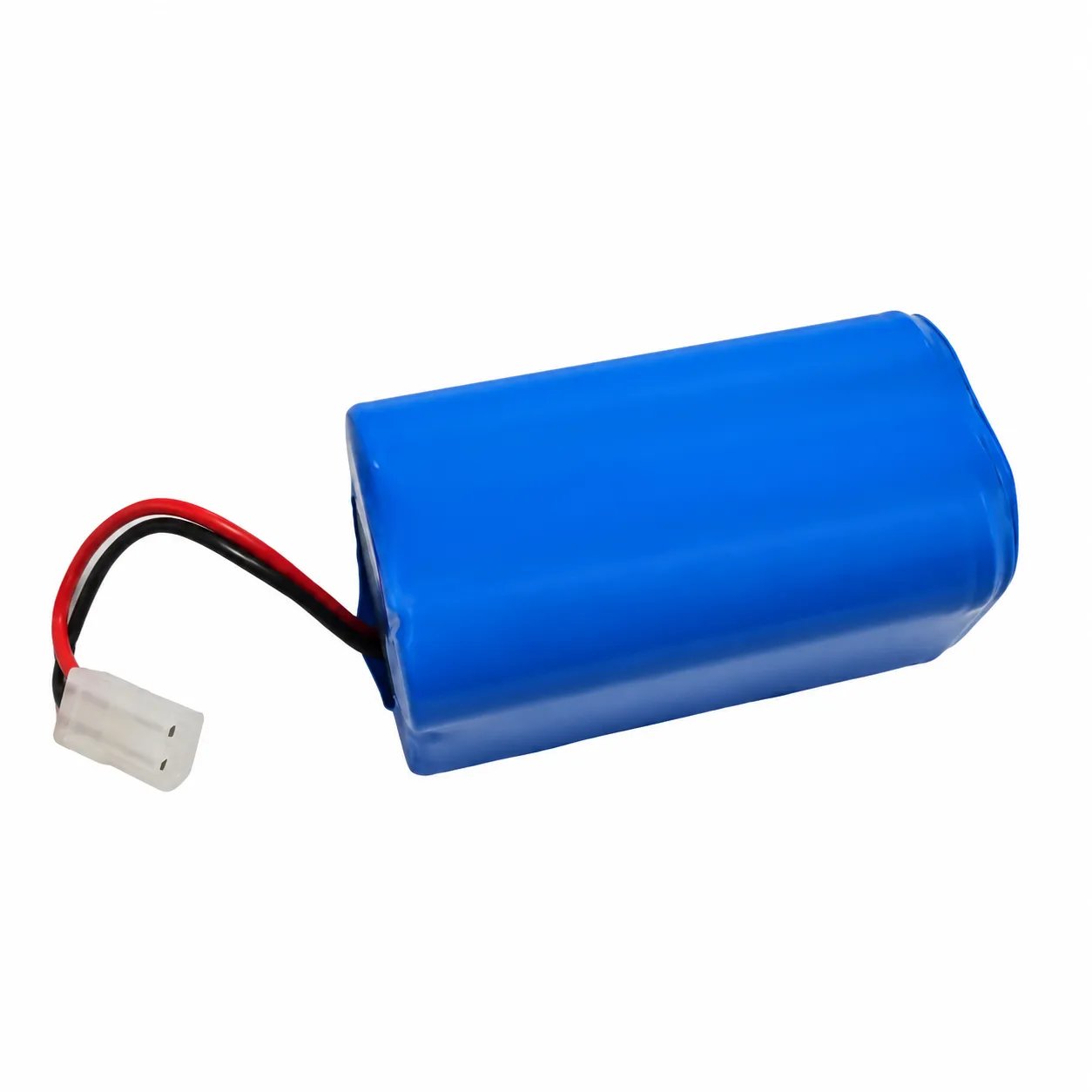

Battery Pack Option for Higher-Voltage Monitoring Stations

• Cell Model: HL18650Y

• Chemistry: NCM

• Configuration: 4S1P

• Nominal Voltage: 14.4 V

• Nominal Capacity: 3,200 mAh

From Cell Selection to Custom Battery Pack

Custom battery packs engineered around your device requirements.

Cell Selection

NCM / LiFePO₄

→

Pack Configuration

Voltage · Capacity

→

Protection

PCM / BMS · NTC

→

Wiring

Connectors · Cables

→

Mechanical Structure

Size · Structure

→

Charging Match

Grid · Solar · USB / DC

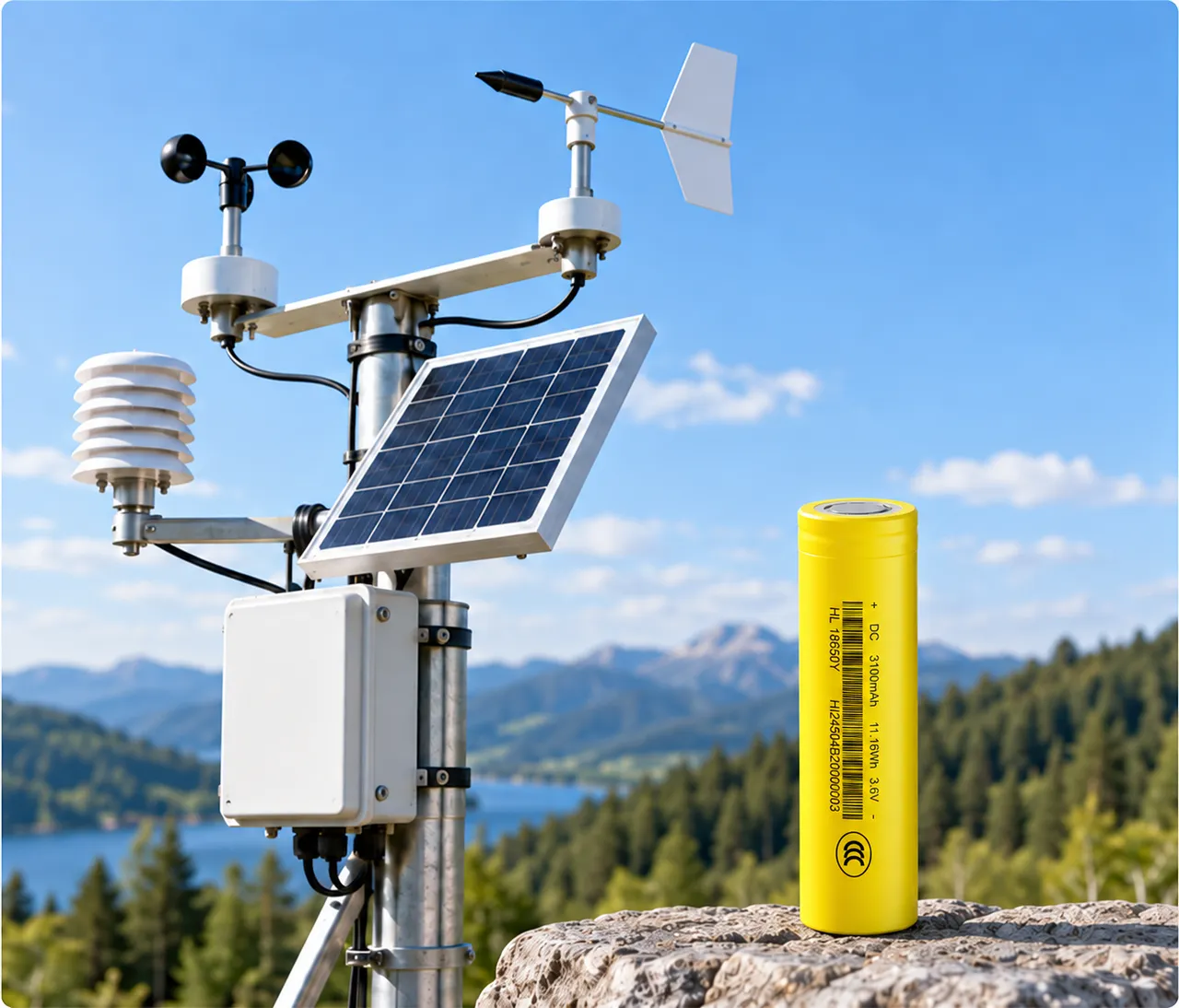

UltraXel 18650Y battery for Solar Data Logger Project

This custom data logger battery uses seven HL18650Y cells in a 1S7P configuration to support an outdoor solar data collector and gateway.

Battery Solution for Solar Data Collectors & Gateways

This custom battery solution was developed for a solar data collector and gateway used for long-term environmental monitoring across Europe. Its high capacity supports continuous data collection, wireless communication and reliable operation across changing outdoor temperatures while reducing on-site maintenance.

Why Choose UltraXel Battery?

Customize Environmental Monitoring Battery Project

UltraXel supports Environmental Monitoring devices with cell selection, custom battery packs and application-based design.

What We Offer

Contact Form

For a faster response, email [email protected] or complete the form below.

Environmental Monitoring Battery FAQ

Which lithium battery chemistry is best for environmental monitoring equipment?

NCM offers higher energy density for compact data loggers and telemetry units. LiFePO₄ provides longer cycle life and thermal stability for solar-powered or frequently cycled monitoring systems.

Which UltraXel battery is suitable for an environmental data logger?

HL18650V is suitable for cold outdoor environments, supporting −40°C discharge and charging down to −20°C. HL18650Y provides 3200mAh for applications requiring higher capacity.

How should a telemetry battery handle communication peaks?

The battery must maintain stable voltage during LoRaWAN, NB-IoT, LTE-M or 4G transmission. UltraXel offers low-resistance, high-power cells such as the 30A HL18650F.

Can UltraXel lithium-ion batteries charge below 0°C?

Yes. All UltraXel cells support charging down to −20°C under specified charging conditions.

How should a battery be sized for a solar-powered monitoring station?

Capacity should be based on daily energy use, communication loads, seasonal solar input, low-temperature performance and required backup days.

Can UltraXel customize environmental monitoring battery packs?

Yes. UltraXel can customize the chemistry, voltage, capacity, PCM/BMS, NTC, wiring, connectors and pack dimensions according to the equipment.
